Voice Board Revisions: Rhodes (later)

By David Clarke [21030085++] <ac151@ncf.ca>

In 1982 the board was re-laid out but still required two jumpers to be placed on the component/front side of the board. This appears to be the last main production version of the board.

As with the trace cut revision, it appears that more than one fabrication run of this board configuration was made. Date codes I have seen in this configuration include the following.

33-82

Front of 33-82 Rhodes voice board

(larger view of front of board)

Fabrication date of 33-82 Rhodes voice board

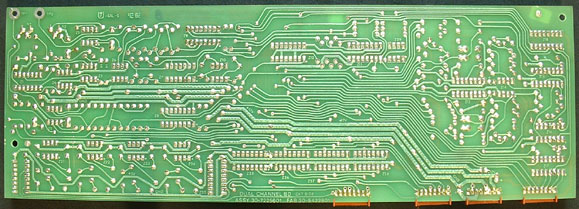

Back of 33-82 Rhodes voice board

42-82

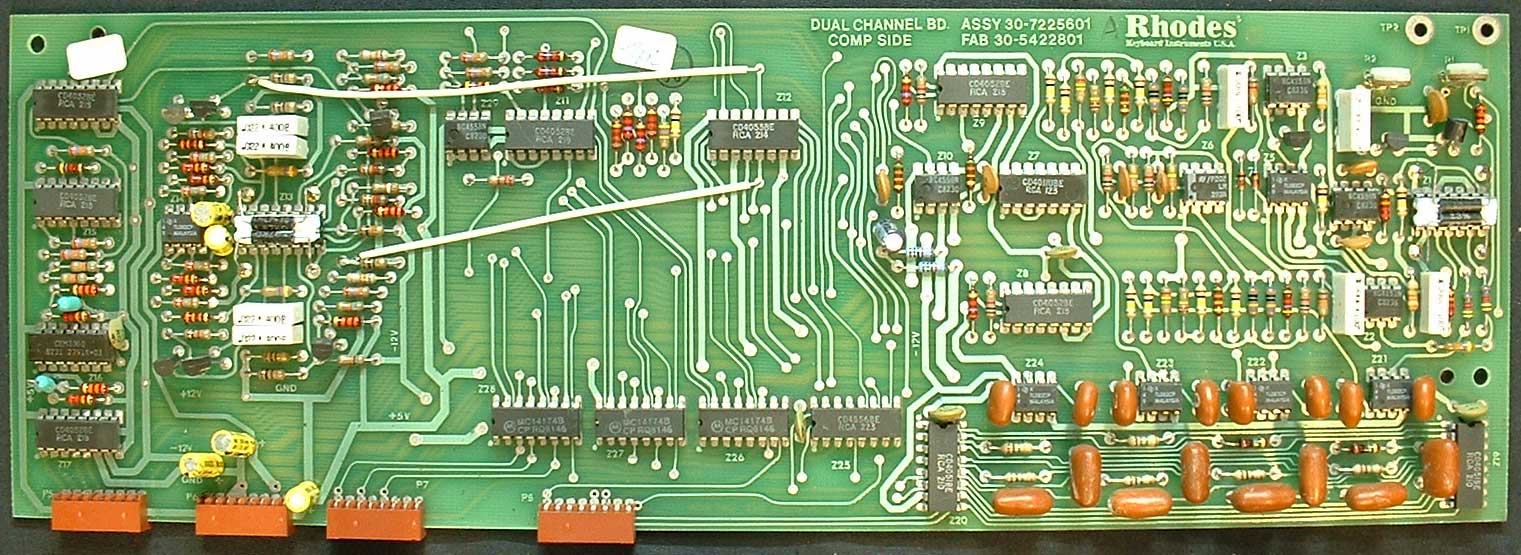

(larger view of front of board)

Fabrication date of 42-82 Rhodes voice board

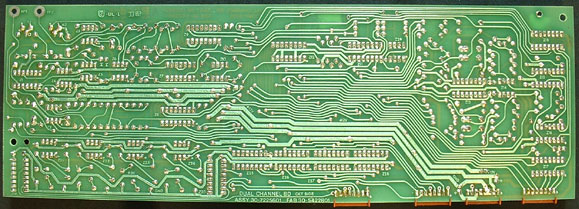

Back of 42-82 Rhodes voice board

36-83

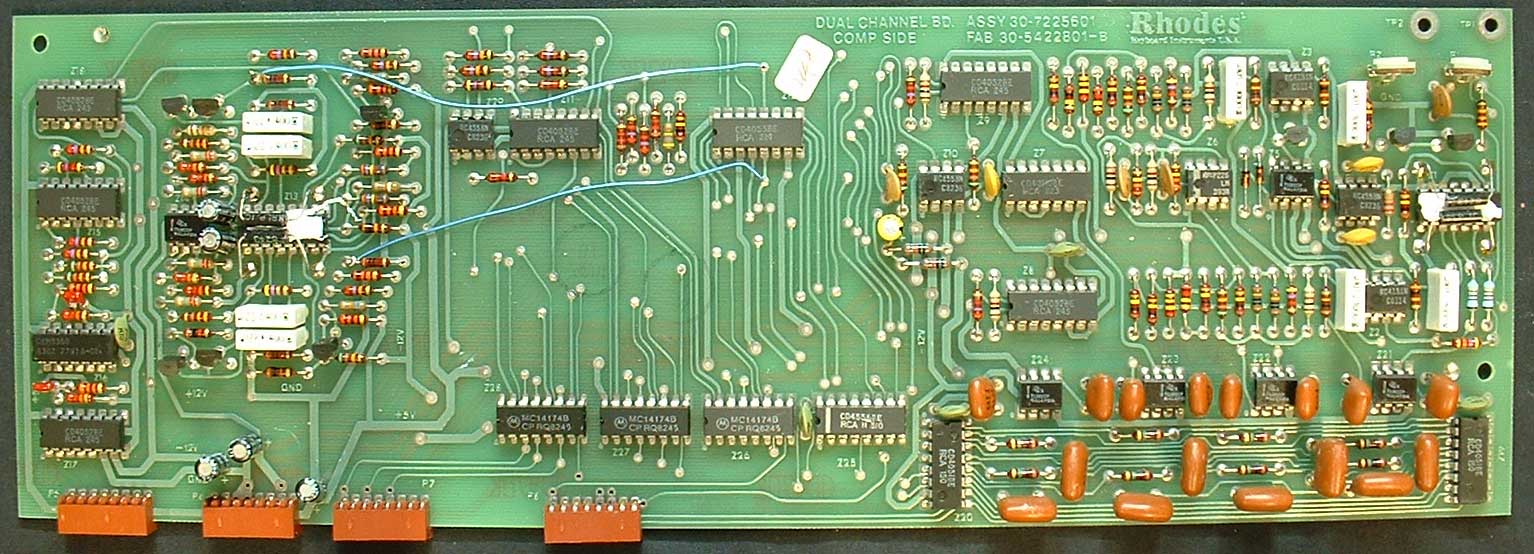

(larger view of front of board)

Fabrication date of 36-83 Rhodes voice board

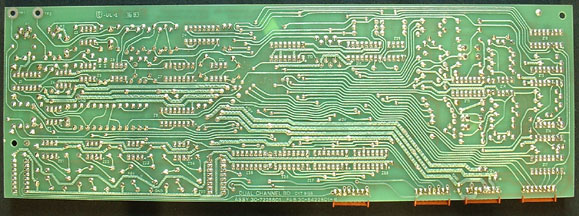

Back of 36-83 Rhodes voice board
